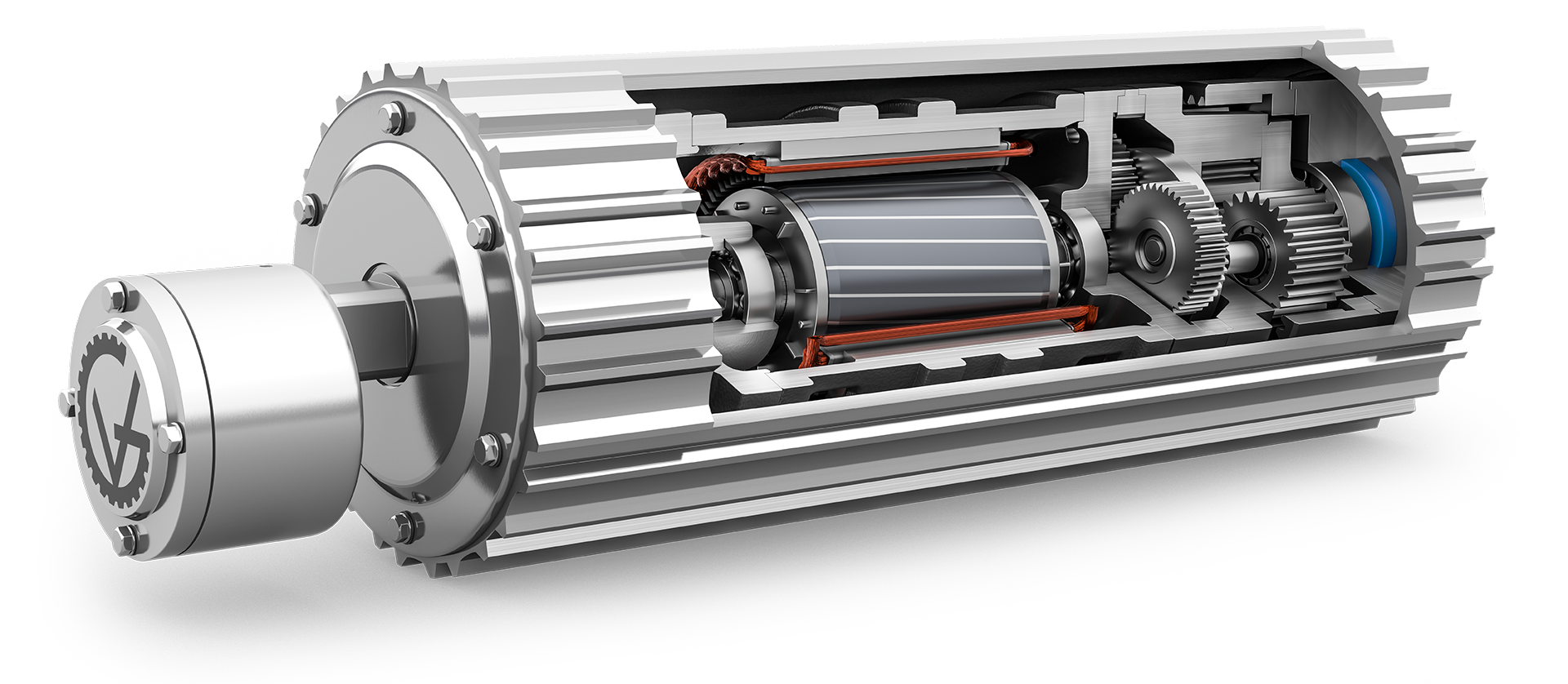

SSV Series Drum Motor

The SSV Series Drum Motor is the most hygienic conveyor belt drive designed and engineered for food, beverage, and pharmaceutical conveyor applications where sanitation and food safety are paramount.

The SSV Drum Motor is constructed of 316-stainless steel. It is USDA-approved, features an IP69K-rated sealing system, withstands pressure washdown up to 3,000 psi and exceeds the highest level of sanitation requirements. For modular, wire mesh, and monolithic thermoplastic conveyor belts, SSV Drum Motors have the belt profile machined directly on the drive drum or on an exchangeable profiled sleeve (SSV-XP) to drive the belt without using sprockets. Belt profiles are available for various belt manufacturers including Intralox, Wire Belt, Habasit, Gates, Cambridge and Volta.

 vdg drum motors

SSV Series Drum Motors are available in a range of diameter sizes, belt speeds, horsepower, and with FDA/USDA-approved lagging and belt profile options to suit various belt conveyor applications.

ssv-family

DESIGN BENEFITS

316-stainless steel construction
IP69K-rated sealing system
Withstands pressure washdown up to 3,000 psi
Drives modular and monolithic belts without sprockets

All enclosed one-component conveyor drive
Premium-efficiency electric motor
Maintenance-free for 80,000 hrs. of continuous operation
Space-saving design

Configure your drive

SSV Drum Motor Overview

Diameter (inches) HP Range Drum Motor Series Dimensions Specifications
4.0 0.11 - 0.25 TM100B25 PDF PDF
4.5 0.16 - 0.75 TM113B25 PDF PDF
5.0 0.25 - 1.5 TM127B30 PDF PDF
5.4 0.25 - 1.5 TM138B30 PDF PDF
6.5 0.75 - 3.0 TM160B40 PDF PDF
8.5 2.0 - 7.5 TM215B40 PDF PDF
8.5 2.0 - 7.5 TM215B50 PDF PDF

SSV Drum Motor Options

  Standard Option
Power Connection Junction Box Cable
Electric Motor Class H
Inverter Duty
VFD Rated
VPi
GV Thermal Overload Protection
Voltage 480V
3 phase, 60Hz
220V, 240V, 600V
Backstop   CW
CCW
Electromagnetic Brake    Available for TM127 and higher
Lagging   USDA/FDA Food Grade Blue or White Nitrile Rubber: Plain, Diamond or Chevron
Drum Profile   Belt profiles for various belt manufacturers
Profiled Sleeve (XP) for various belt manufacturers
